Capture a Type-1 DV File

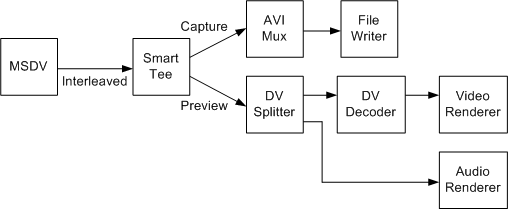

A type-1 DV AVI file contains a single interleaved stream. To capture a type-1 file while previewing, use the filter graph shown in the following diagram.

Filters in this graph include:

• The Smart Tee filter splits the interleaved DV into a capture stream and a preview stream. Both streams contain the same interleaved data.
• The AVI Mux and File Writer write the interleaved stream to disk.
• The DV Splitter splits the interleaved stream into a DV video stream and an audio stream. Both streams are rendererd for preview.
• The DV Video Decoder decodes the DV video stream for previewing.

Build this graph as follows:

ICaptureGraphBuilder2 *pBuilder;  // Capture graph builder.
IBaseFilter           *pDV;       // DV capture filter (MSDV)
IBaseFilter           *pAviMux    // Avi Mux filter.

// Initialize pDV (not shown).
// Create and initialize the Capture Graph Builder (not shown).

// Create the file-writing section of the graph.
hr = pBuilder->SetOutputFileName(&MEDIASUBTYPE_Avi,
    OLESTR("C:\\Example1.avi"), &pAviMux, 0);

// Render the capture stream.
hr = pBuilder->RenderStream(&PIN_CATEGORY_CAPTURE, &MEDIATYPE_Interleaved,
    pDV, 0, pAviMux);

// Render the preview stream.
hr = pBuilder->RenderStream(&PIN_CATEGORY_PREVIEW, &MEDIATYPE_Interleaved,
    pDV, 0, 0);

// Remember to release all interfaces.

1. Call ICaptureGraphBuilder2::SetOutputFileName to connect the AVI Mux filter to the File Writer filter.
2. Call ICaptureGraphBuilder2::RenderStream with the pin category PIN_CATEGORY_CAPTURE to render the capture stream. The Capture Graph Builder automatically inserts the Smart Tee filter.
3. Call RenderStream again, but with the pin category PIN_CATEGORY_PREVIEW, to render the preview stream. Skip this call if you do not want to preview the video.

For both calls to RenderStream, the media type is MEDIATYPE_Interleaved, meaning interleaved DV video. In this code, the Capture Graph Builder automatically adds every filter that is needed, except for the MSDV capture filter.
