Microsoft DirectX 9.0

CTransInPlaceInputPin Class

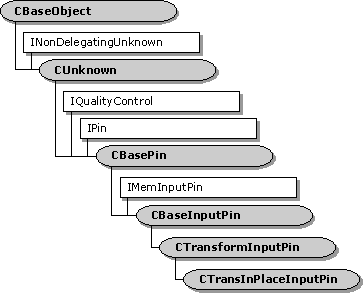

CTransInPlaceInputPin Class Hierarchy

The CTransInPlaceInputPin class implements an input pin that is used by the CTransInPlaceFilter class.

Typically, you do not need to derive from this class. If you do, you must override the filter's CTransInPlaceFilter::GetPin method to create instances of your derived class.


Header: Declared in Transip.h; include Streams.h.

Library: Use Strmbase.lib (retail builds) or Strmbasd.lib (debug builds).

Protected Member Variables
m_bReadOnly Flag that specifies whether the input stream is read-only.
m_pTIPFilter Pointer to the filter that created this pin.
Public Methods
CTransInPlaceInputPin Constructor method.
CheckMediaType Determines if the pin accepts a specific media type.
PeekAllocator Retrieves a pointer to the pin's allocator.
ReadOnly Indicates whether the input stream is read-only.
IPin Methods
EnumMediaTypes Enumerates the pin's preferred media types.
IMemInputPin Methods
GetAllocator Retrieves the memory allocator proposed by this pin.
NotifyAllocator Specifies an allocator for the connection.
GetAllocatorRequirements Retrieves the allocator properties requested by the pin.
