CBaseOutputPin Class

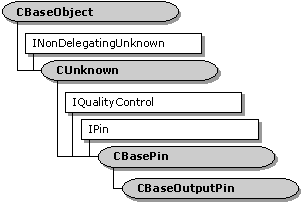

CBaseOutputPin Class Hierarchy

The CBaseOutputPin class is an abstract base class that implements an output pin.

This class derives from CBasePin. It differs from CBasePin in the following respects:

When the pin connects, it requests a memory allocator from the input pin. Failing that, it creates a new allocator object. The output pin is responsible for setting the allocator properties. It does this through the pure virtual method CBaseOutputPin::DecideBufferSize. Override this method in your derived class. If the input pin has any buffer requirements, they are passed to the DecideBufferSize method.

Call the CBaseOutputPin::GetDeliveryBuffer method to obtain an empty media sample. Call the CBaseOutputPin::Deliver method to deliver samples downstream.

Your derived class must override the pure virtual CBasePin::CheckMediaType method to validate the media type during pin connections.


Header: Declared in Amfilter.h; include Streams.h.

Library: Use Strmbase.lib (retail builds) or Strmbasd.lib (debug builds).

Protected Member Variables
m_pAllocator Pointer to the memory allocator.
m_pInputPin Pointer to the input pin connected to this pin.
Public Methods
CBaseOutputPin Constructor method.
DecideAllocator Selects a memory allocator. Virtual.
GetDeliveryBuffer Retrieves a media sample that contains an empty buffer. Virtual.
Deliver Delivers a media sample to the connected input pin. Virtual.
InitAllocator Creates a memory allocator. Virtual.
CheckConnect Determines whether a pin connection is suitable.
BreakConnect Releases the pin from a connection.
Active Notifies the pin that the filter is now active.
Inactive Notifies the pin that the filter is no longer active.
DeliverEndOfStream Delivers an end-of-stream notification to the connected input pin. Virtual.
DeliverBeginFlush Requests the connected input pin to begin a flush operation. Virtual.
DeliverEndFlush Requests the connected input pin to end a flush operation. Virtual.
DeliverNewSegment Delivers a new-segment notification to the connected input pin. Virtual.
Pure Virtual Methods
DecideBufferSize Sets the buffer requirements.
IPin Methods
BeginFlush Begins a flush operation.
EndFlush Ends a flush operation.
EndOfStream Notifies the pin that no additional data is expected.
